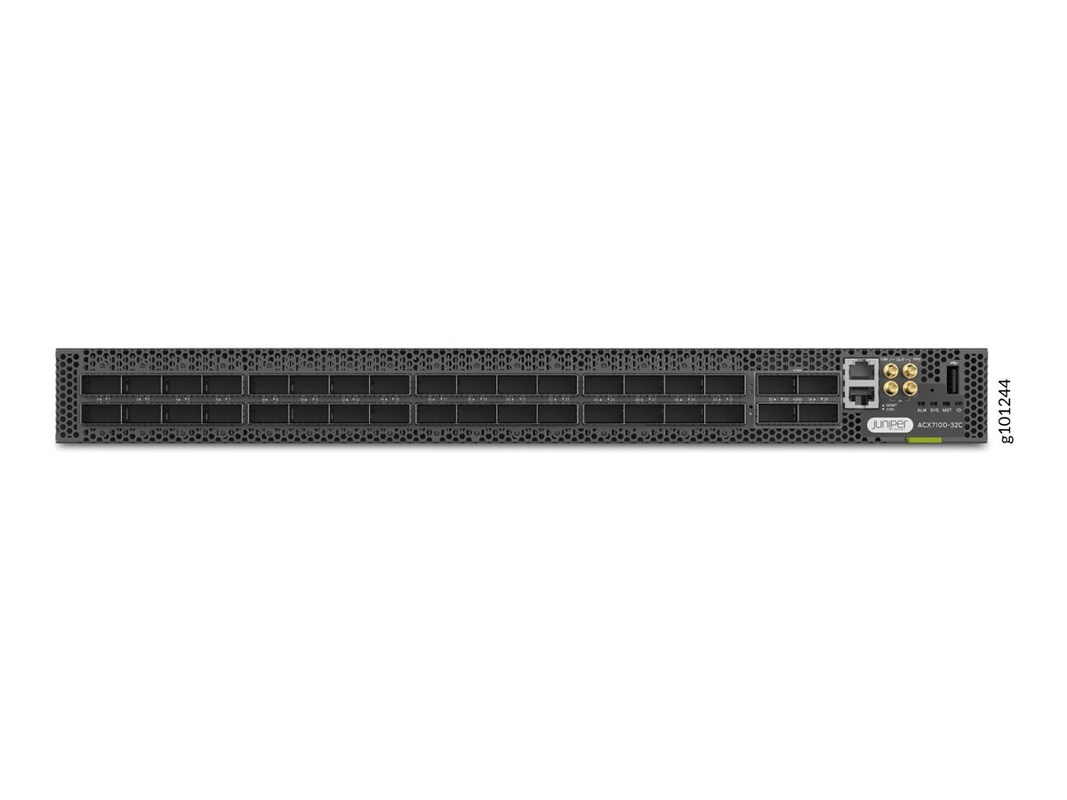

The Juniper Networks ACX7100-32C-DC-AO is designed for high-performance networking with a robust set of features. Equipped with a powerful Intel processor running at 2.9 GHz and 64 GB of RAM, this router delivers throughput of 4.8 Tbps. The dual internal power supplies provide reliable performance with a power consumption of 570 W and support for power redundancy. Featuring 32 x 100Gb Ethernet and 4 x 400Gb Ethernet interfaces, it ensures a flexible connection solution via QSFP28 and QSFP56-DD connectors. The chassis includes hot-swap fans for efficient cooling and a front-to-back airflow direction, making it suitable for various environments with an operating temperature range of 0°C to 40°C and humidity levels of 5% to 90% (non-condensing).
-
Connectivity Technology: Wired
-
Color Family: GrayForm Factor: Rack-mountableManufacturer Product Line: Juniper Networks ACX7100 SeriesModel: ACX7100-32C-DC-AOWeight Taxonomy: 28.44lbs
-
RAM (installed): 64GB
-
Modem Type: None
-
Networking Type: Router
-
OS Provided: JUNOS
-
# Power Supplies Installed: 2# Power Supplies Supported: 2Power Provided: 1600
-
Processor Manufacturer: IntelProcessor Speed: 2.9GHz
-
Networking Protocol: 100 Gigabit EthernetNetworking Protocol: 400 Gigabit Ethernet
-
Due to manufacturer restrictions, all sales on this item are final.
-
28.95 lbs
-
Compliant Standards: BSMICompliant Standards: CAN/CSA-C22.2 No. 60950-1Compliant Standards: CAN/CSA-C22.2 No. 62368-1-14Compliant Standards: CISPR 24Compliant Standards: CISPR 32 Class ACompliant Standards: CISPR 35: 2016Compliant Standards: CNS 13438Compliant Standards: ECR 3.0.1Compliant Standards: EN 300 386 V1.6.1Compliant Standards: EN 300 386 V2.1.1Compliant Standards: EN 55032 Class ACompliant Standards: EN 55035Compliant Standards: EN 60825-1Compliant Standards: EN 60950-1:2006+A2:2013Compliant Standards: EN 62368-1:2014Compliant Standards: EN55024Compliant Standards: ETSI ES 203 136 V.1.1.1Compliant Standards: FCC CFR47 Part 15 ACompliant Standards: GR-1089-CORECompliant Standards: GR-63-CORECompliant Standards: ICES-003 Class ACompliant Standards: IEC 60950-1:2005 + A2:2013Compliant Standards: IEC 62368-1: 2014 Second EditionCompliant Standards: IEC/EN 61000-4-11Compliant Standards: IEC/EN 61000-4-2Compliant Standards: IEC/EN 61000-4-3Compliant Standards: IEC/EN 61000-4-4Compliant Standards: IEC/EN 61000-4-5Compliant Standards: IEC/EN 61000-4-6Compliant Standards: KN 61000-4-11Compliant Standards: KN 61000-4-2Compliant Standards: KN 61000-4-3Compliant Standards: KN 61000-4-4Compliant Standards: KN 61000-4-5Compliant Standards: KN 61000-4-6Compliant Standards: KN32Compliant Standards: KN35Compliant Standards: NCC C6357Compliant Standards: SR-3580 NEBS Level 3Compliant Standards: TEC/EMI/TEL-001/FEB-09Compliant Standards: TEC-SD-DD-EMC-221-05-OCT-16Compliant Standards: UL 60950-1 Second EditionCompliant Standards: UL 62368-1Compliant Standards: VCCI
-
