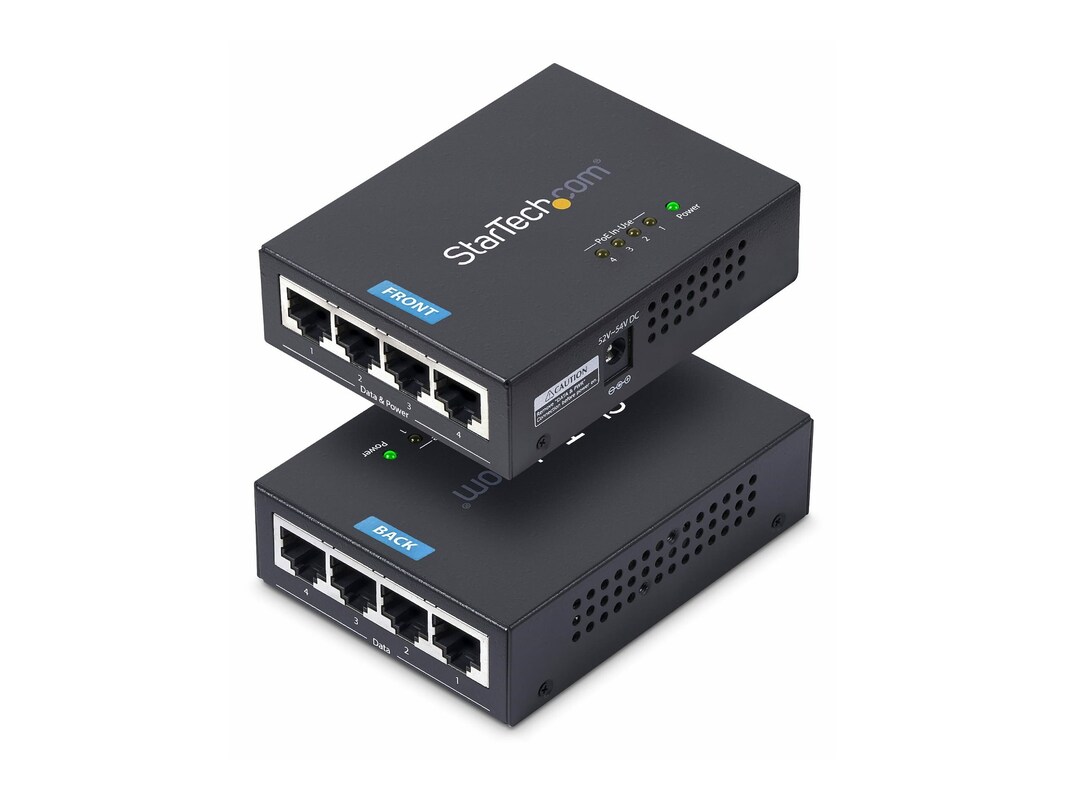

This Gigabit midspan PoE+ injector is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.
It supplies up to 30 Watts output to each port, so you can easily power and access up to four high-power PoE-compliant devices - such as IP cameras - using standard Ethernet cable.
This versatile midspan PoE+ injector is suited for almost all PoE device classes, including wireless access points, as well as IP phones and cameras. The high-power PoE+ injector offers 120W of total power distribution and delivers full power - up to 30.8W - from each port. Now, you can easily scale and power your PoE+ devices across long distances, even in remote locations where a typical power outlet is unavailable.
Plus, the cost-effective Power over Ethernet+ injector lets you connect your PoE-powered devices (PDs) to a non-PoE-capable switch, avoiding the expense and aggravation of upgrading your existing switch to a PoE-enabled model.
This injector is the perfect solution for a variety of environments. It features a wall-mountable rugged metal casing but is palm-sized making it perfect for desktop placement too.
With plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.
Not sure which class your PoE devices are? The Gigabit midspan PoE+ injector automatically detects the power requirements of your PoE PDs and delivers the appropriate level of power without damaging your devices.
With integrated circuit protection between each port, your devices are also protected from power interference.
-
7.10 oz
-
4-PORT GIGABIT PoE+ INJECTOR: Provides power and data to up to four PoE-enabled devices over an Ethernet connection; Supports Gigabit speeds with up to 30.8W (802.3at) or 15.4W (802.3af) per port, ensuring reliable performance for demanding applications
AUTOMATIC SPEED & POWER NEGOTIATION: Supports auto-sensing between 10/100/1000Mbps, ensuring compatibility with a wide range of Powered Devices (PDs); Delivers power and data up to 328ft (100m) over existing Cat5e/6/6a cabling for flexible deployments
PLUG-AND-PLAY: No software or configuration required; Connect to a network switch or router and power remote devices like IP cameras, access points (APs), and VoIP phones; Automatically detects and delivers the correct PoE level for each connected device
FLEXIBLE & SPACE-SAVING DESIGN: Ideal for remote device installations where power outlets are limited; Wall-mountable for convenient access and clean cable management
-
PoE Injector, power adapter, power cord
-
Color: BlackColor Family: BlackForm Factor: ExternalManufacturer Product Line: StarTech.comModel: 4-Port Gigabit PoE+ Midspan, Power over Ethernet InjectorWarranty Period: 2 yearsWeight Taxonomy: 7.12oz
-
Data Transfer Rate: 2Gbps
-
1"h x 3.7"w x 2.8"d
-
(4) RJ-45 (data)
(4) RJ-45 PoE+
-
Power Provided: 120Voltage Provided: DC 54V
-
Supply: 100-240VAC
Consumption: 129.6W (max)
-
Networking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3afNetworking Protocol: IEEE 802.3atNetworking Protocol: PoE+
-
This product is subject to our return policy. Please see our complete return policy for details.
-
3.08 lbs
-
Compliant Standards: CECompliant Standards: FCCCompliant Standards: RoHSCompliant Standards: TAACompliant Standards: Yes
-
39121017
